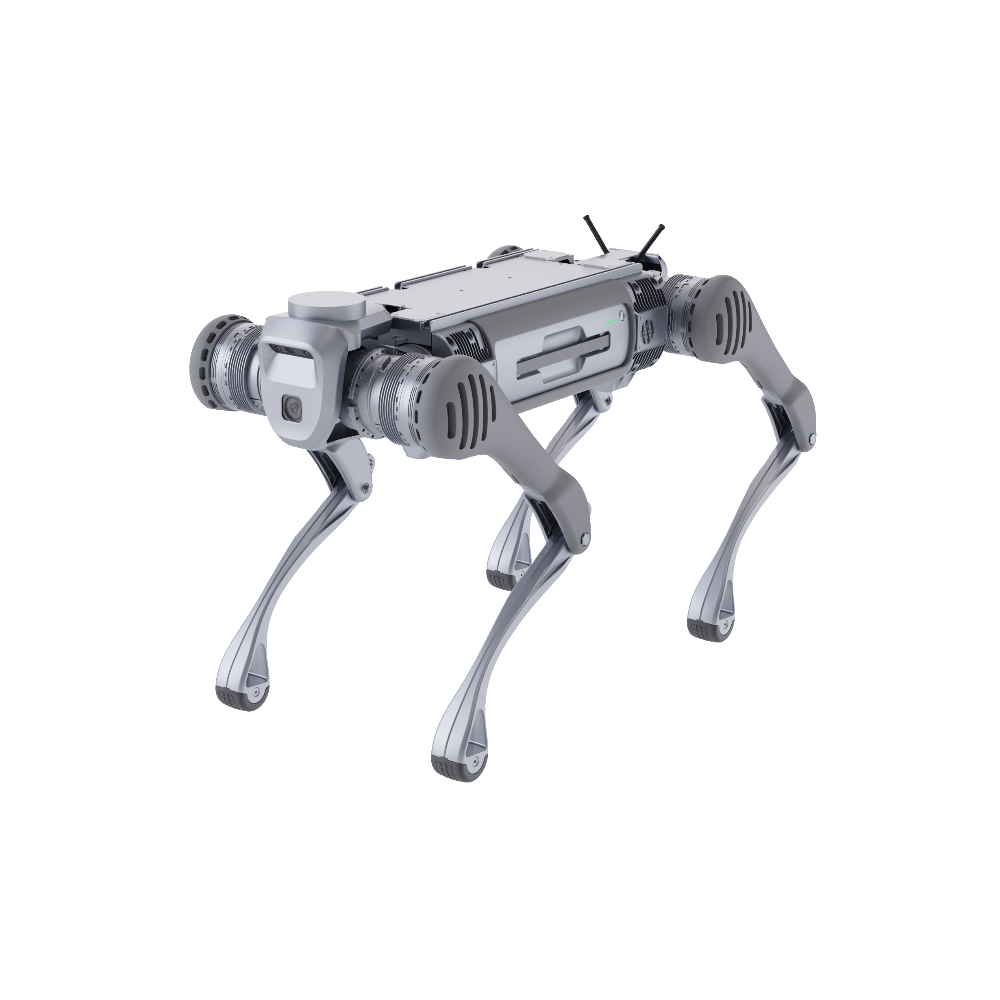

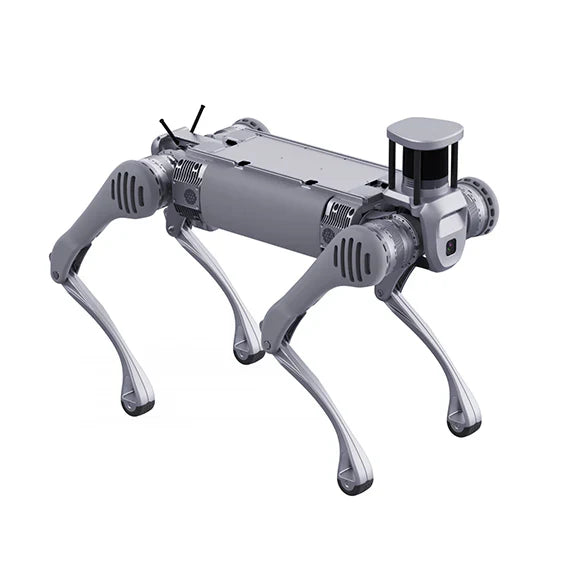

Unitree B2

Fastest running industrial-grade quadruped robot at 6m/s

Climbing stairs as if they were flat.

Excellent sustained stair climbing, effortlessly tackling steps.

Remains extremely stable and balanced when climbing.

170% increase in joint performance with 360 N.m of torque Extreme performance provids greater flexibility and stability for industrial operations.

Plug-in Battery

Stable and Reliable Autonomous Charging

B2 battery supports quick change and also supports autonomous charging solutions(optional)，suitable for a wide range of solutions.

Hardware platform
●Weight (with battery): about 60kg;

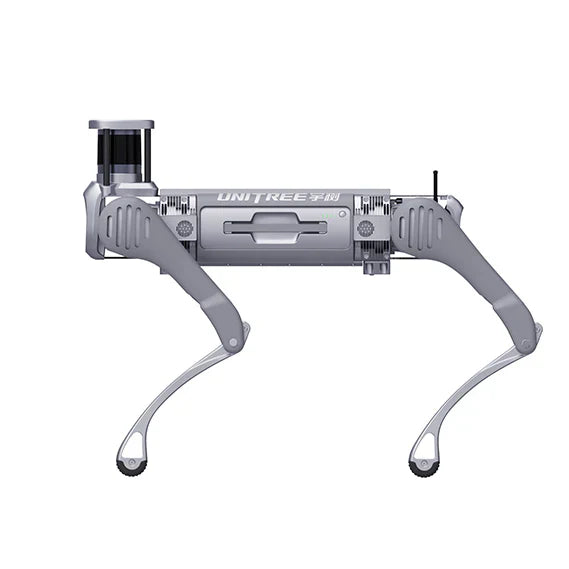

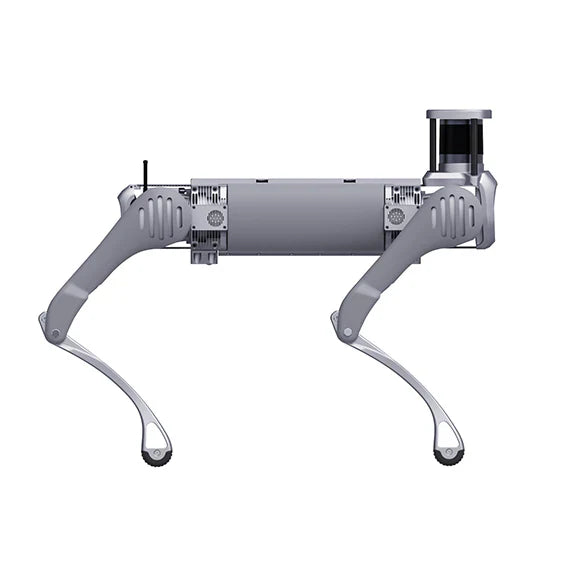

●Length, width and height (when standing): about 1098mm*450mm*645mm;
●Endurance: continuous walking with no load, the endurance is more than 20km and the endurance is more than 5 hours; continuous walking with a load of 20kg, the endurance is more than 15km and the endurance is more than 4 hours
●Can be up and down a stairs of 40cm in the forward direction
● Continuous walking load capacity ≥ 40kg
● The fastest speed of 5m/s
● Battery capacity of 45Ah, rated energy 2250Wh, maximum support for 15A charging

Sensing module

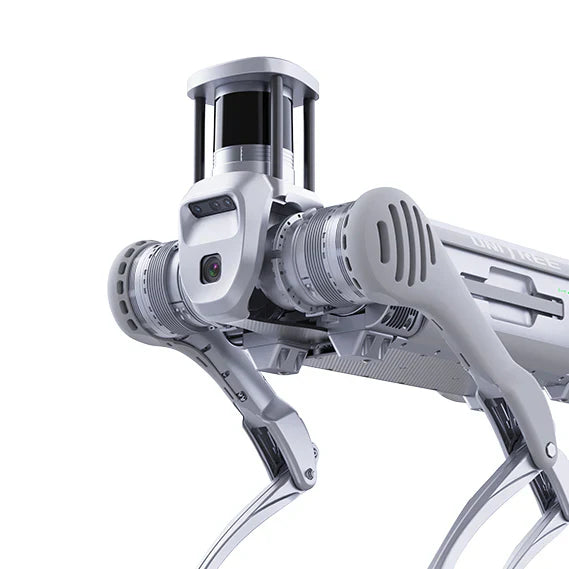

●Built-in multi-group depth camera, multi-group high-definition camera
●Ignore the terrain, combined with the perception of real-time switching gait and landing point
